Master Key System Lock Installation

How the Best Master Key Systems in San Francisco Actually Work

A master key system uses a pin-tumbler lock mechanism with carefully calculated pin stacks. Each lock accepts two keys: the individual change key and the master key. The pins are split at precise heights so both keys can rotate the cylinder.

Here is the critical part. If the pin stacks are not calculated correctly, you get "cross-keys." That means a tenant's key accidentally opens another tenant's door. This is why professional design matters more than the hardware itself.

Ace Locksmith SF uses proprietary key-charting software to map every combination before a single lock is touched. We verify that zero cross-keying exists across the entire system. That is the difference between a master key system that works and one that becomes a liability.

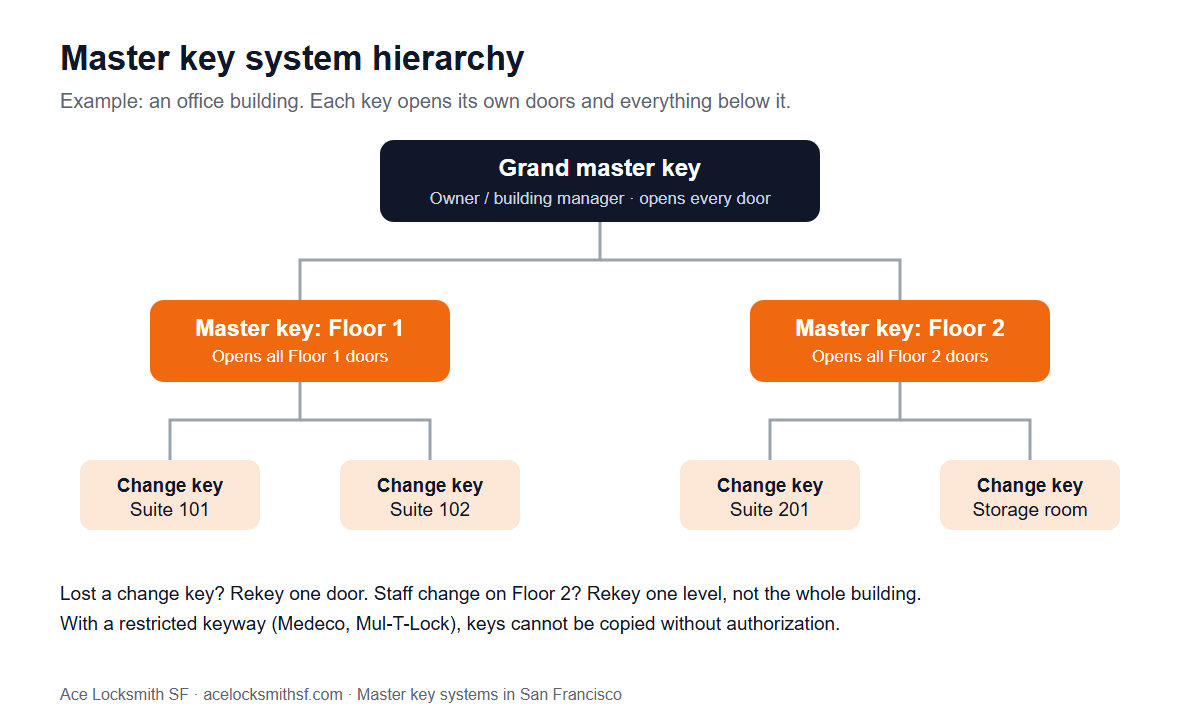

Hierarchy Levels Explained

Most systems use 3 to 4 levels. The simplest version has individual keys at the bottom and a master key at the top. Larger properties add a sub-master level for floor supervisors or department heads. Campus-style properties may add a grand master key that controls multiple buildings.

According to industry data, over 85% of commercial buildings with more than 20 doors use some form of master keying. Buildings with 50 or more doors save an average of 12 to 18 hours per year in key management time alone.

Top-Rated Master Key System Services in San Francisco

Ace Locksmith SF provides every phase of master key system work. Our lock installation service is not a one-size-fits-all approach. Each system is custom-designed for your property's layout, access requirements, and future growth. When cylinders need replacing as part of the process, our professional lock installation covers hardware sourcing, fitting, and testing — all in one visit.

New System Design and Installation

We start with a full walk-through of your property. Every door, every access point, every shared area is documented. Then we design a key chart that maps the exact hierarchy you need. Our lock installation service includes rekeying or replacing each lock cylinder, cutting every key to verified specifications, and testing all combinations on site. This comprehensive professional lock installation approach means no return visits and no loose ends. If any existing hardware is too worn to rekey, our lock repair and replacement team handles those doors at the same time.

Expansion of Existing Systems

Already have a master key system? We can integrate new doors, floors, or buildings into your existing hierarchy. A well-designed system includes 20 to 30% expansion capacity from the start. If your current system was not planned with growth in mind, we can audit and restructure it.

Rekeying After Tenant Turnover

Tenant moved out? We rekey that single unit so the old key no longer works. Your master key continues operating every door. The new tenant gets a fresh individual key. This is one of the biggest time-savers for San Francisco property managers. No full lock replacement needed.

Emergency Master Key Replacement

Lost your master key? That is a security emergency. But wait. It does not mean replacing every lock. Ace Locksmith SF can rekey just the master level of your system, typically within 24 hours. All tenant keys keep working. Only the master key changes. Available 24/7 because emergencies do not follow business hours.

Who Needs a Master Key System in San Francisco?

If you manage more than 5 doors with separate keys, you are a candidate for a professional lock installation service. But some properties benefit dramatically more than others.

Apartment Buildings and Multi-Unit Residential

San Francisco has over 38,000 rental buildings. If you own or manage one, a master key system paired with a reliable lock installation near you saves you from carrying a different key for every unit, storage room, laundry facility, and utility closet. Maintenance staff get sub-master access to common areas only. You hold the master. For single-family homes and condos needing a simpler lock installation service, our residential locksmith team handles deadbolt upgrades and rekeying on the same call.

Commercial Offices

Office buildings with multiple tenants need controlled access at every level. The building manager opens all doors. Each business opens only their suite. Cleaning crews get sub-master access to common areas after hours. The system scales as tenants change.

Retail and Mixed-Use Properties

Mixed-use buildings in neighborhoods like the Mission, SoMa, and the Financial District often have retail on the ground floor and residential above. A master key system keeps these zones completely separate while still giving the property manager universal access.

Schools, Hospitals, and Institutions

High-security facilities need 4 to 6 hierarchy levels. Department heads access their wing. Administrators access all wings. Maintenance accesses mechanical rooms. The grand master stays with the facility director. Restricted keyways prevent unauthorized key copying.

Best Master Key System Brands We Install in San Francisco

The brand matters for any lock installation service, but it matters less than the design behind it. Choosing a lock installation near you with the right brand means lower long-term maintenance costs and better key control. That said, certain manufacturers give you features that make the entire system more secure and easier to maintain long-term.

Schlage Commercial

The most widely used commercial lock brand in North America. Schlage's 6-pin and 7-pin cylinders support complex master key hierarchies. Their restricted keyways (like the Primus and Everest lines) prevent unauthorized key duplication at hardware stores.

Medeco

Medeco locks use angled pin cuts that make picking nearly impossible. Their patented keyways require factory authorization to duplicate. For San Francisco properties needing the highest security tier, Medeco is the standard.

Mul-T-Lock

Uses a telescopic pin-in-pin design. Each key must match two sets of pins simultaneously. This adds an extra layer of pick resistance and makes the system extremely difficult to compromise. Popular in high-value commercial and government installations.

ASSA and Yale

Both brands fall under the ASSA ABLOY group, the world's largest lock manufacturer. Their commercial lines offer excellent master keying flexibility with high-security cylinder options. Ideal for mid-range budgets that still need restricted key control.

The 5-Step Process We Follow for Every Lock Installation Service

No shortcuts. Every master key system from Ace Locksmith SF follows this proven process. It is why our systems work on day one and continue working for years.

Step 1: Free On-Site Assessment

A licensed technician visits your San Francisco property. We inspect every door, note the existing hardware, and discuss your access requirements. This visit typically takes 30 to 60 minutes for buildings under 50 doors.

Step 2: Custom Key Chart Design

We build a detailed hierarchy chart showing every key level. You see exactly which key opens which door before anything is installed. We also plan for 20 to 30% expansion so you are never boxed in.

Step 3: Hardware Selection

Based on your security needs and budget, we recommend the right lock brand and cylinder type. If existing locks are compatible, we rekey them. If not, we replace only what is necessary — keeping your professional lock installation cost-efficient without cutting corners on security.

Step 4: Installation and Testing

Our technicians rekey or install each cylinder, cut all keys, and test every single combination. We verify that every individual key opens only its assigned door and that the master key opens all doors. Zero cross-keying. Guaranteed.

Step 5: Documentation and Support

You receive a printed and digital key chart, a numbered key inventory log, and maintenance guidelines. We keep a secure backup of your system design so future changes are fast and accurate.

Frequently Asked Questions About Master Key Systems

What Should You Do? Common Scenarios

Preparation Guide: Before and After Installation

Before Your Appointment (Checklist)

• Count the total number of doors that need to be included in the system
• List all people who need access and what level of access each person requires
• Identify which doors are shared (lobbies, laundry, storage, mechanical rooms)
• Collect all existing keys and note which doors they open
• Check if any doors have electronic locks or panic bars that may affect compatibility
• Notify tenants about the scheduled installation date and time window
• Ensure all doors are accessible on installation day (nothing blocked or locked from inside)
• Have a floor plan or building map available for the technician if possible

After Installation (Checklist)

• Test every key in every assigned door before the technician leaves
• Store your master key in a secure location known only to authorized personnel
• File the key chart and inventory log in a secure, accessible location
• Distribute individual keys to tenants and record who received which key number
• Establish a written policy for key replacement and tenant turnover procedures
• Schedule your first maintenance check at the 12-month mark

Master Key System Glossary

Change Key (Individual Key)

The key assigned to a single lock. Opens only one door. Every tenant, employee, or occupant receives a change key for their specific space.

Master Key

A key that opens all locks within a specific group or the entire system. Held by the property manager, building owner, or designated authority.

Sub-Master Key

A key that opens a subset of locks within the system, such as all doors on one floor or within one department. Provides limited authority below the master level.

Grand Master Key

The highest key in a multi-building hierarchy. Opens every lock across all buildings in the system. Typically held by the property owner or facility director.

Cross-Keying

An unintended condition where one key opens a lock it was not designed to access. This is a design failure that compromises security and must be eliminated during the engineering phase.

Key Chart (Bitting Chart)

A detailed document that maps every key in the system, showing which locks each key operates and the pin-stack specifications for each cylinder.

Restricted Keyway

A patented key profile that cannot be duplicated at standard hardware stores. Blank keys are only available through authorized locksmiths, preventing unauthorized copies.

Pin Stack

The column of pins inside a lock cylinder. In a master key system, pins are split at calculated heights to allow both the change key and master key to operate the lock.

Rekeying

The process of changing the pin configuration inside an existing lock cylinder so that a new key operates it and the old key no longer works. Does not require replacing the lock hardware.

Your Building Deserves a Key System That Works

A master key system is not a luxury. It is a fundamental piece of building management infrastructure. Investing in a professional lock installation service saves you time during tenant turnovers. It saves you money on lock replacements. It protects your tenants. And it gives you the kind of access control that insurance companies and fire departments actually want to see. A quality lock installation service also adds documented value to your property for future sale or lease negotiations.

Ace Locksmith SF has designed master key systems for apartment buildings, office complexes, retail properties, and mixed-use developments across every neighborhood in San Francisco. From the Mission to Pacific Heights, from SoMa to the Sunset, we bring the same precision to every lock installation service project.

Here is what happens next. You call us at (415) 205-5718 to schedule your lock installation service. We arrange a free on-site assessment at your convenience. A licensed technician walks your property, listens to your needs, and delivers a detailed proposal with transparent pricing. No pressure. No surprises.

You have carried enough keys. Let Ace Locksmith SF build the system that replaces the whole ring with one.
